Neha Nayak
Architectural Concept DesignDubai, UAE

Logistic Complex

Project Brief

Located adjacent to Dubai Airport, this project was envisioned as a mixed-use commercial development.

In collaboration with the senior architects, a dual-purpose complex was proposed, comprising a ground-floor warehouse and a five-storey office building above.

Both components were designed as leasable spaces for third-party tenants, maximizing the site's commercial value while ensuring efficient functionality and long-term flexibility.

Scope of Work
  • Architectural concept layout development
  • Calculations, e.g. NLA, BUA & GFA
  • Concept presentation development
  • Preliminary concept design submissions
Inverted-line concept artwork of the Logistic Complex at night
Concept Artwork
Drawings

Floor Plans

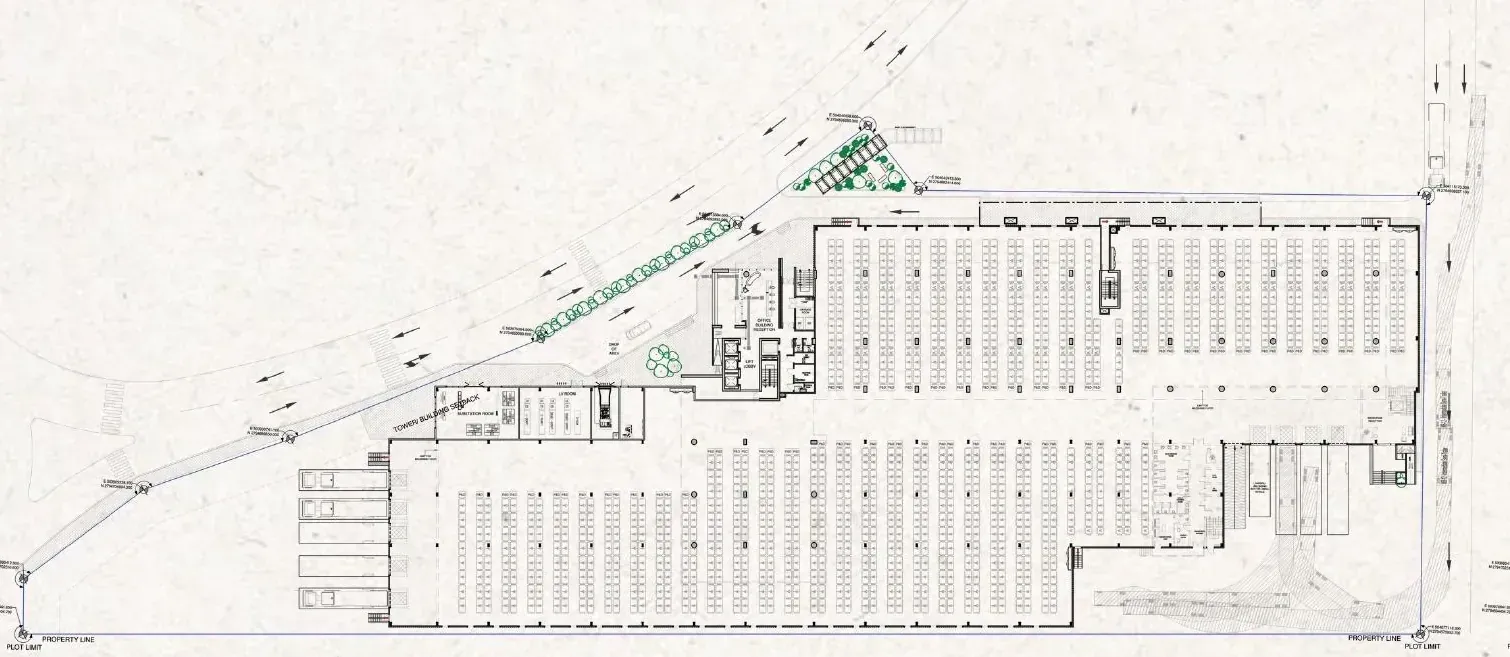

Ground floor plan of the warehouse level
Ground Floor Plan

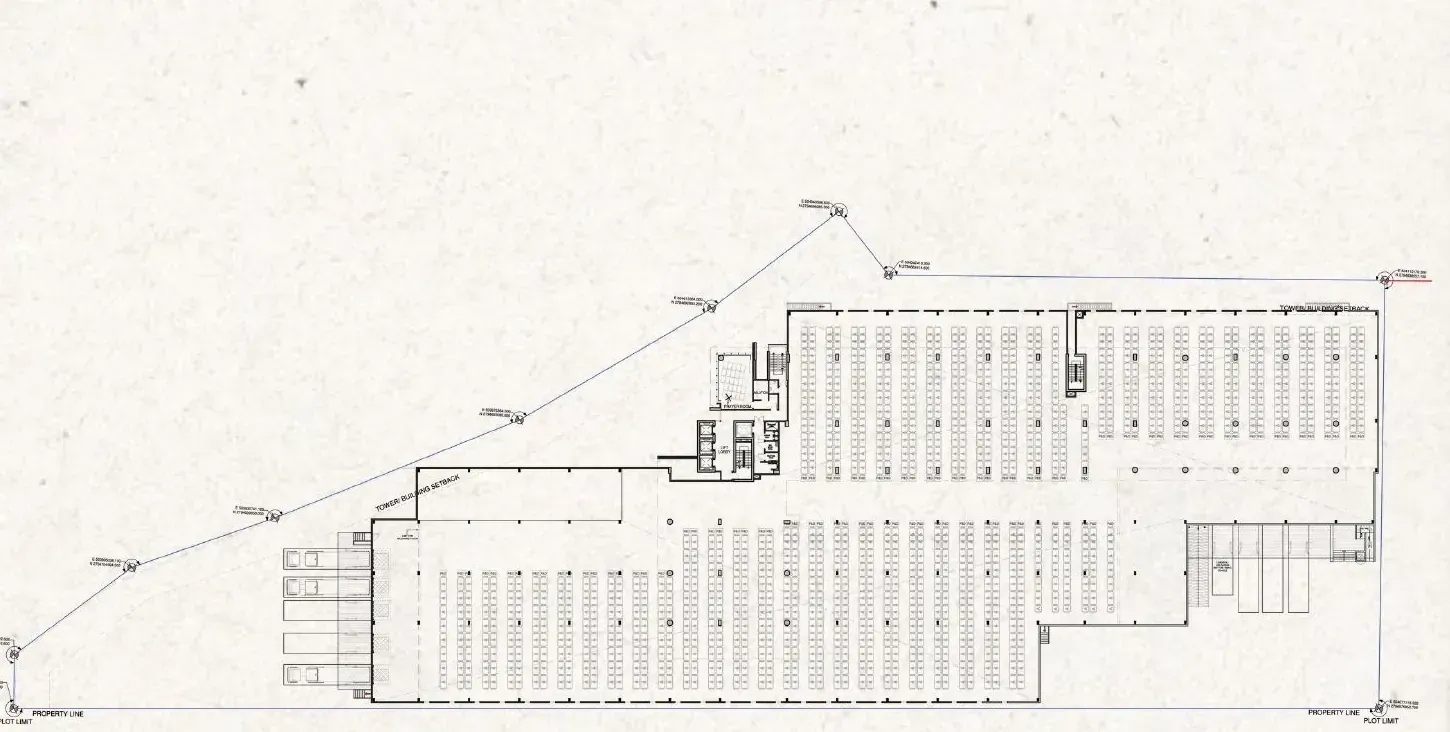

Mezzanine floor plan
Mezzanine Floor Plan

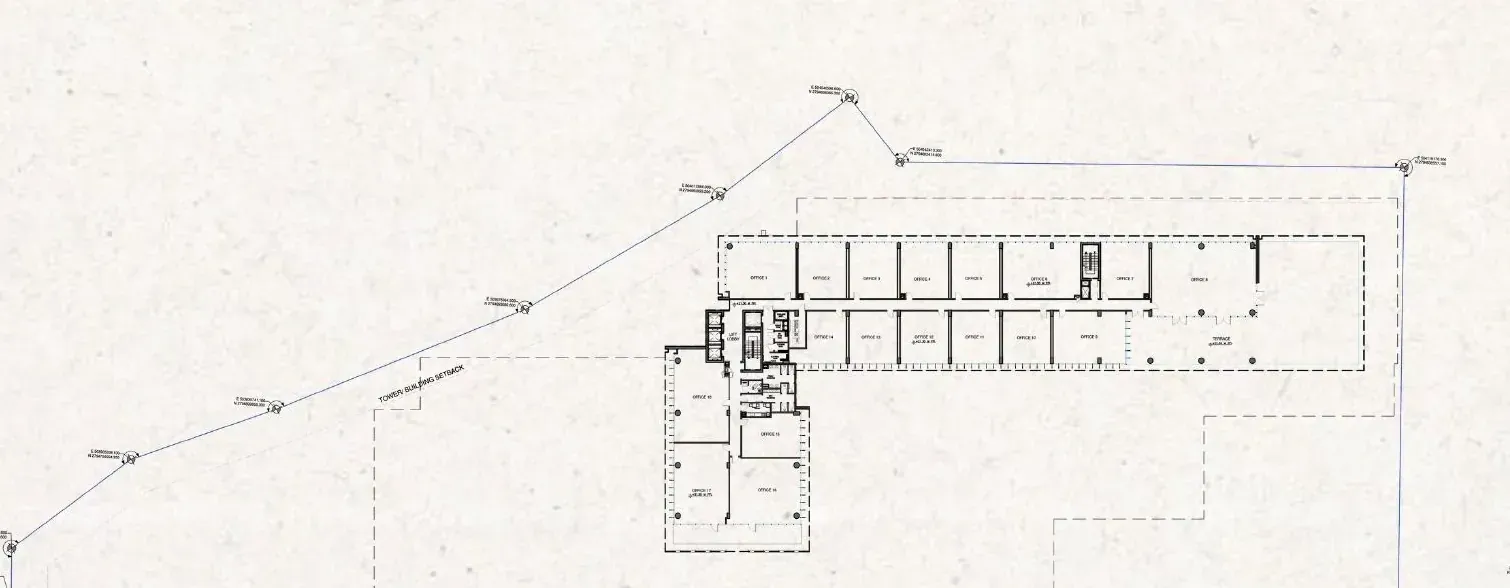

First floor plan of the office building
First Floor Plan

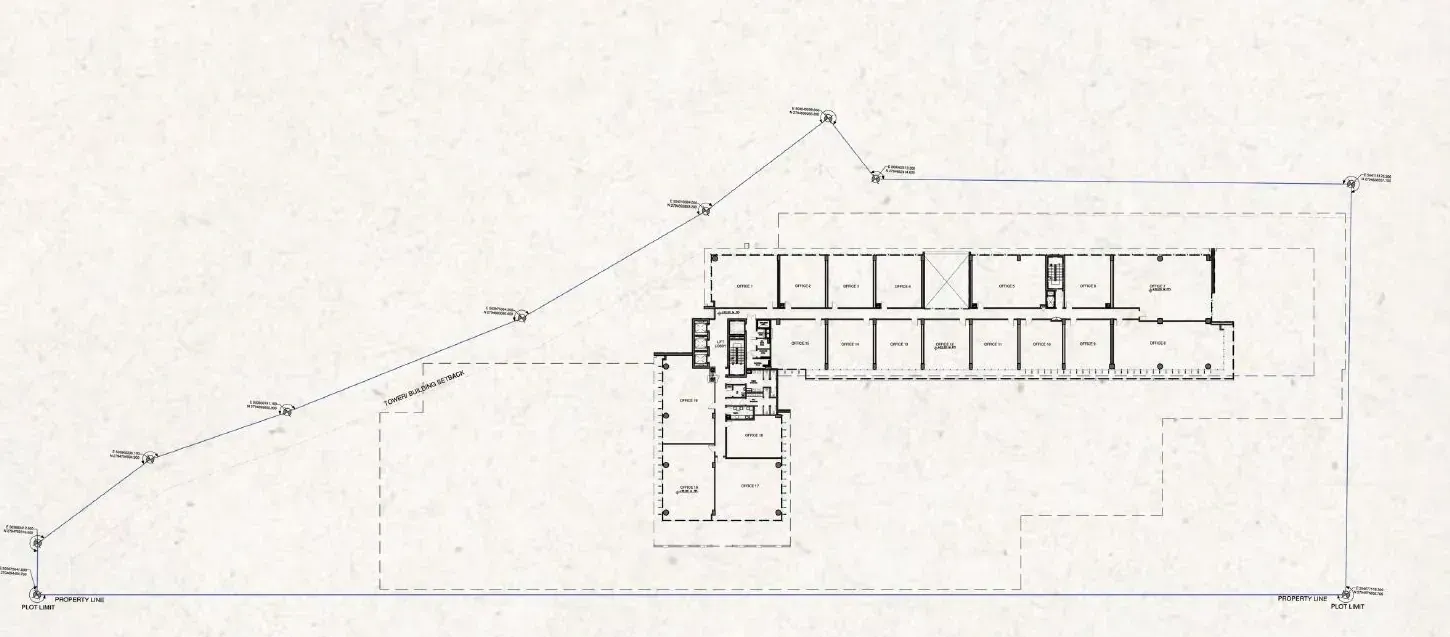

Fourth floor plan of the office building
Fourth Floor Plan
Drawings

Elevations

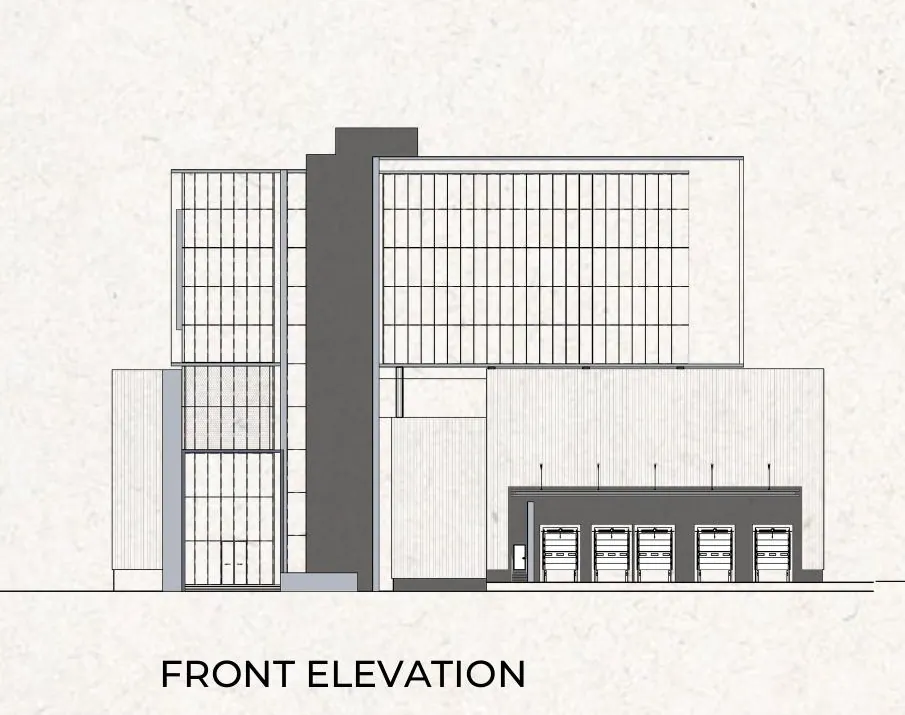

Front elevation drawing of the Logistic Complex
Front Elevation

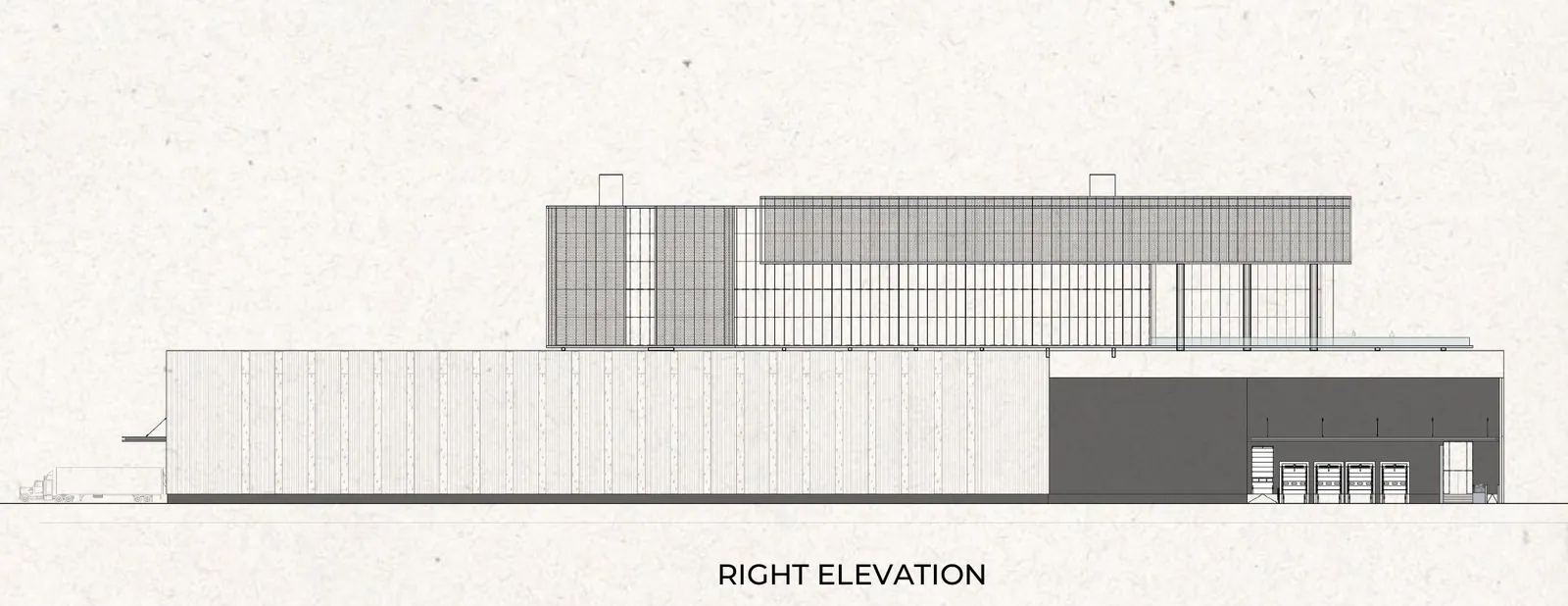

Right elevation drawing of the Logistic Complex
Right Elevation

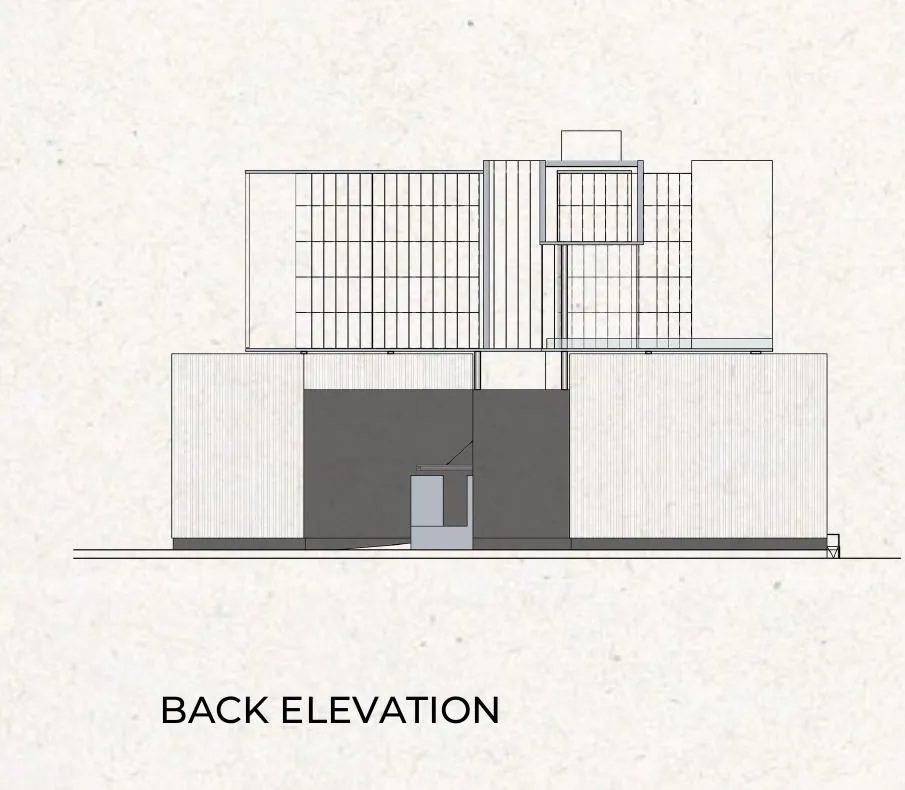

Back elevation drawing of the Logistic Complex
Back Elevation

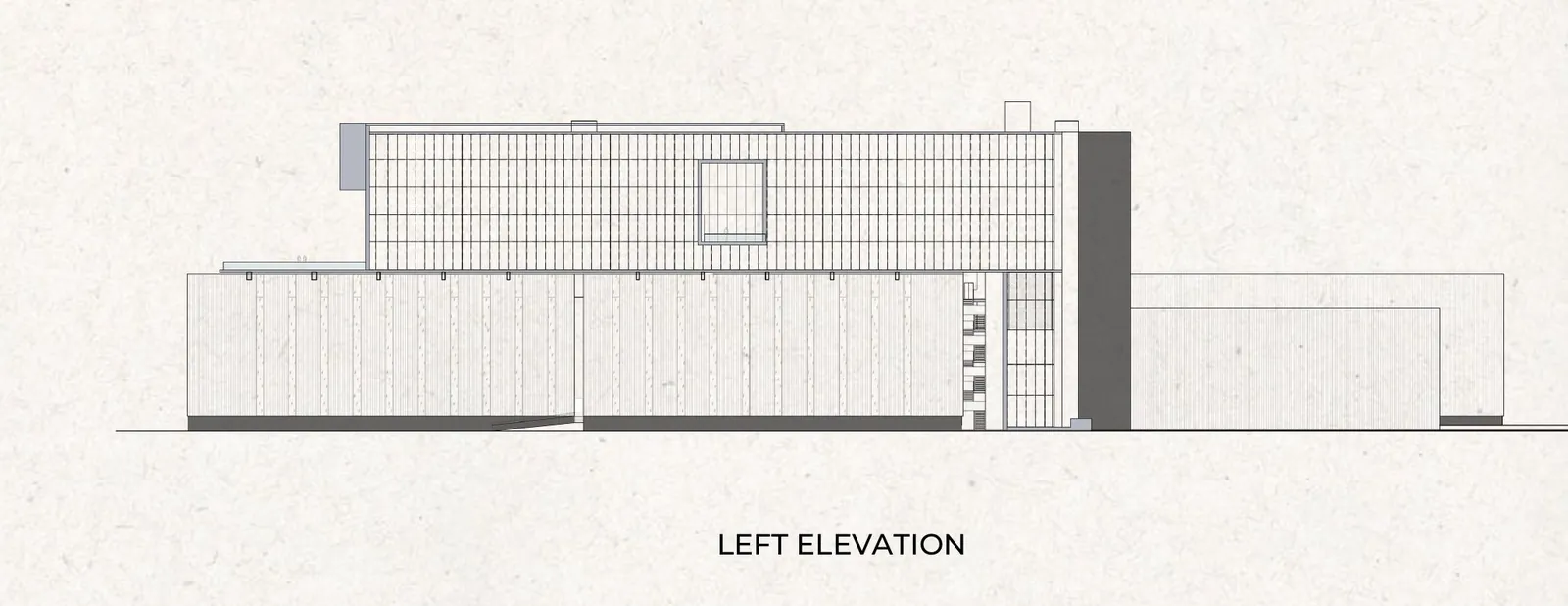

Left elevation drawing of the Logistic Complex
Left Elevation
Visualisation

Renders

Render of the warehouse facade
Warehouse Facade
Render of the office building entrance
Office Entrance
